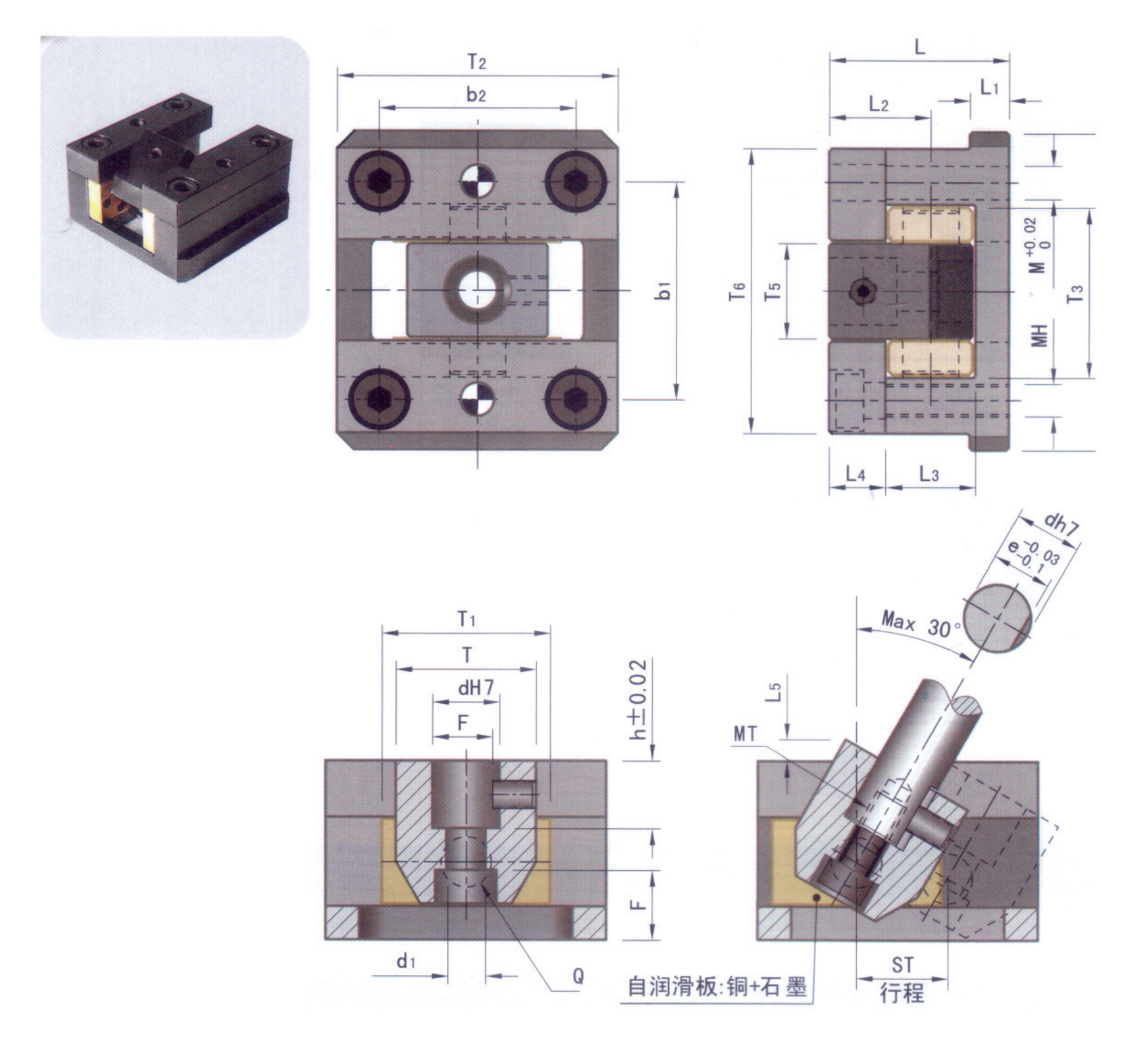

此产品安装在模具的顶针推板上，需配成形斜推杆,成型后,在推板顶出的过程中通过产品内部机构自润滑动,在规定的行程内将成型塑胶件内侧面凹凸形状的型芯顶出,使胶件顺利脱模.
| Φd | T | T1 | T2 | T3 | T4 | T5 | T6 | L | L1 | L2 | L3 | L4 | L5 | ΦM |
| 8 | 20 | 20 | 32 | 19 | 33 | 11 | 30 | 22 | 5 | 12.5 | 11 | 7 | 10.5 | 3 |
| 10 | 25 | 25 | 45 | 25 | 45 | 15 | 40 | 27 | 15.5 | 15 | 8 | 11.3 | 4 | |
| 12 | 30 | 50 | 31 | 57 | 17 | 51 | 32 | 7 | 18 | 16 | 10 | 4 | 6 | |
| 20 | 30 | 40 | 65 | 38 | 65 | 22 | 58 | 36 | 8 | 20 | 20 | 5 | ||
| 25 | 40 | 50 | 80 | 44 | 80 | 26 | 72 | 45 | 11 | 23 | 22 | 12 | 8 | 8 |
| 30 | 45 | 55 | 90 | 52 | 93 | 32 | 85 | 50 | 15 | 28 | 26 | 15 | 10 | |
| 35 | 50 | 60 | 100 | 60 | 101 | 38 | 93 | 55 | 30 | 30 | 9 | |||
| 40 | 60 | 75 | 120 | 70 | 120 | 45 | 110 | 62 | 35 | 34 | 18 | 10 | ||
| 45 | 70 | 85 | 135 | 80 | 130 | 55 | 120 | 70 | 40 | 44 | 12 | |||
| 80 | 95 | 150 | 90 | 140 | 60 | 130 | 80 | 45 | 50 | 20 | 14 |
| Code | Φd | h | ΦQ | Φd1 | b1 | b2 | e | F | 行程 | MT | MH |
| DTK-08 | 8 | 8 | 7 | 4.5 | 24 | 20 | 7 | 10 | 10 | M4 | M3 |
| DTK-10 | 10 | 10 | 5.5 | 32 | 30 | 9 | 12.5 | 18 | M5 | M4 | |
| DTK-12 | 12 | 12 | 10 | 7 | 39 | 35 | 11 | 15 | 20 | M6 | M6 |
| DTK-16 | 16 | 16 | 12 | 9 | 46 | 40 | 14.5 | 25 | M8 | ||
| DTK-20 | 20 | 20 | 14 | 11 | 56 | 55 | 18 | 16 | 30 | M10 | M8 |
| DTK-25 | 25 | 25 | 16 | 14 | 66 | 65 | 22.5 | 17 | 35 | M12 | M10 |
| DTK-30 | 30 | 30 | 18 | 74 | 70 | 27 | 40 | ||||
| DTK-35 | 35 | 35 | 20 | 85 | 80 | 32 | 18 | 45 | M12 | ||
| DTK-40 | 40 | 40 | 25 | 18 | 95 | 90 | 36 | 19 | 50 | M16 | |
| DTK-45 | 45 | 45 | 30 | 105 | 110 | 40 | 24 | 55 |
订购：斜顶滑座DTK
